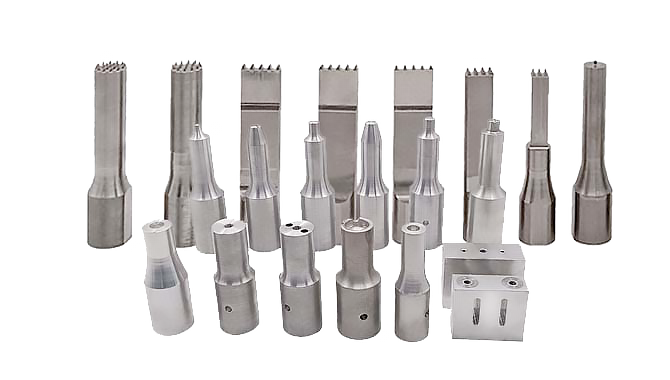

Ultrasonic Horn
Standard and custom sonotrodes for ultrasonic welding and cutting, designed around the workpiece and matched ultrasonic stack.
- Materials
- Aluminum / titanium / hardened steel / stainless steel
- Design method
- Finite element analysis (FEA)
- Configuration
- Standard or customized
Designed for your process.
Standard and custom sonotrodes for ultrasonic welding and cutting, designed around the workpiece and matched ultrasonic stack.
The right result depends on the complete setup: equipment, tooling, material and process settings. Use the technical information below to begin selection, then confirm the configuration around your production requirements.
Read the selection guide →From equipment to application.
Explore relevant workpieces and industry contexts.
⊕Plastic enclosures & electronics
Conceptual polymer parts and fixtures for joint-design discussions.
⊕Automotive manufacturing
Illustrative automotive production context for assembly and integration discussions.
AI-generated application concepts illustrate industry contexts, not actual customer facilities or verified production results. Equipment selection is confirmed for each project.
The details that matter.
| Materials | Aluminum / titanium / hardened steel / stainless steel |
|---|---|
| Design method | Finite element analysis (FEA) |
| Configuration | Standard or customized |
| Applications | Plastic, non-woven and metal welding; cutting |
| Matching | Generator, transducer and workpiece |
Values describe the listed product or available configurations; they are not necessarily combined in one build. Confirm the model, tooling and application before ordering.
Product information reviewed: 2026-10-09
Useful answers.
What is the Ultrasonic Horn used for?+
Standard and custom sonotrodes for ultrasonic welding and cutting, designed around the workpiece and matched ultrasonic stack.
What should I provide for model selection?+
Share your material, part drawing, joint or cutting geometry, target output and installation constraints. For replacement components, include the existing generator, frequency and connection dimensions.
Can I confirm a configuration before ordering?+
Yes. Use the inquiry form to describe your application and the required model. Final tooling, electrical supply, interfaces and performance targets should be agreed for your project.
