High Frequency Ultrasonic Welding Parts 20kHz
Model · MC-QD-PLC-S2026

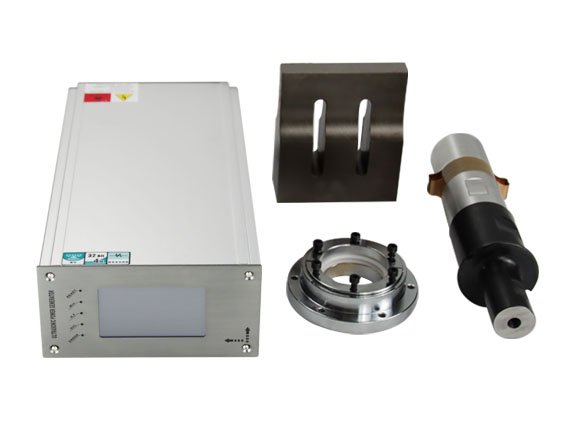

A 20 kHz ultrasonic welding assembly with a PLC-controlled generator, transducer and application-matched sonotrode.
- Frequency
- 20 kHz
- Power
- 2500 W
- Transducer capacitance
- 11–15 nF
Designed for your process.
A 20 kHz ultrasonic welding assembly with a PLC-controlled generator, transducer and application-matched sonotrode.
The right result depends on the complete setup: equipment, tooling, material and process settings. Use the technical information below to begin selection, then confirm the configuration around your production requirements.
Read the selection guide →From equipment to application.
Explore relevant workpieces and industry contexts.
⊕Plastic enclosures & electronics
Conceptual polymer parts and fixtures for joint-design discussions.
⊕Automotive manufacturing
Illustrative automotive production context for assembly and integration discussions.
AI-generated application concepts illustrate industry contexts, not actual customer facilities or verified production results. Equipment selection is confirmed for each project.
The details that matter.
| Frequency | 20 kHz |
|---|---|
| Power | 2500 W |
| Transducer capacitance | 11–15 nF |
| Transducer joint bolt | M3/8 |
| Welding modes | Time / energy / grounding |
| Generator weight | 6 kg |
Values describe the listed product or available configurations; they are not necessarily combined in one build. Confirm the model, tooling and application before ordering.
Product information reviewed: 2026-10-09
